0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 디스플레이 기술 | 둥근 TFT 디스플레이 | 이름 | 시계 oled 디스플레이 |
|---|---|---|---|
| 크기 | 0.9''라운드 | | 해결 | 128*128 픽셀 |
| 디스플레이 유형 | TFT | 인터페이스 | SPI |
| 강조하다 | 0.9 inch round TFT LCD screen,128x128 high-definition round display,ST7735 driver round TFT screen |
||
제품 설명
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver
0.9" Round TFT LCD Display featuring 128x128 HD resolution, ST7735 driver IC, high contrast ratio, stable performance, and long lifespan. Ideal for commercial electronic products and DIY displays.
Product Parameters
| Part No. | ESHX090XZJR01 |
|---|---|
| Driver IC | ST7735 |
| Outline Dimensions (L x W x H) | 25.24mm x 27.14mm x 1.95mm |
| Active Area (L x W) | 23.04mm x 23.04mm |
| Viewing Angle | All directions |
| Operation Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to 80°C |
| Supply Voltage | 3.3V |
| Luminance | 350TYP |
| Connection Type | 4 S-PI |

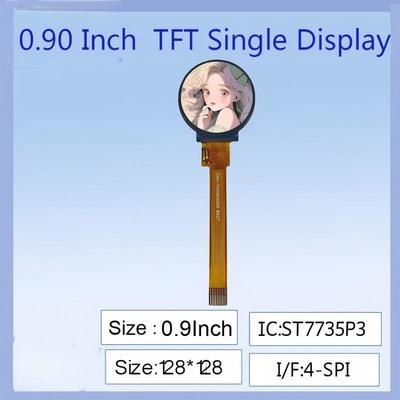

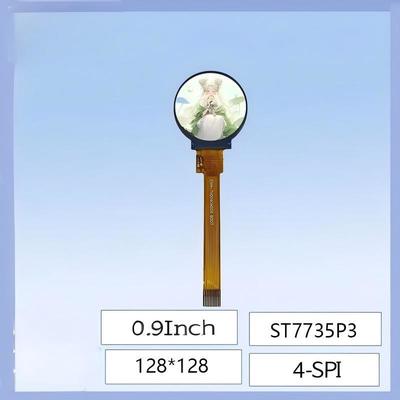

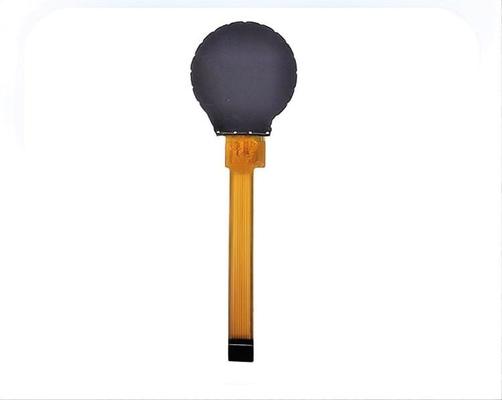

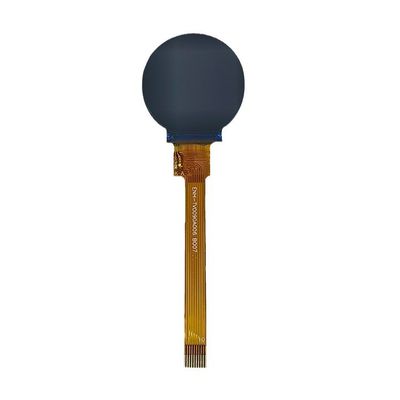

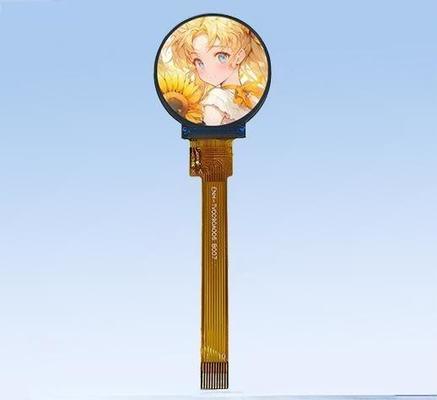

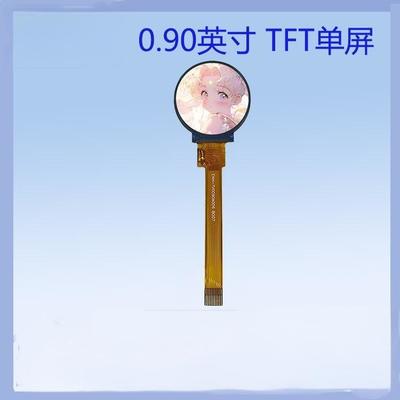

Product Images
Drawing & Pin Definition
OLED Product Knowledge
OLED Advantages
- Lighter and thinner than LCDs
- High contrast ratio
- Superior color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Company Information
Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Founded: 2009
- Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED displays
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- Quality control: 15% of workforce
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Huaxin Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom product design capabilities
Production Capacity
| Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios
- Collimators & navigators
AMOLED Display Characteristics
- Self-emissive pixels
- Superior contrast ratio
- Excellent color accuracy and vibrancy
- Wide viewing angles
- Power efficiency
- Thinness and flexibility
- Fast response time
AMOLED Power Efficiency Comparison
Power Consumption
- AMOLED: Power consumption per pixel (black pixels consume minimal power)
- LCD/LED: Constant backlight power regardless of content
Content Dependency
- AMOLED: More efficient for dark content (pixels can turn off)
- LCD/LED: Constant power consumption regardless of content
Brightness Control
- AMOLED: Dynamic pixel brightness adjustment
- LCD/LED: Fixed backlight brightness
Display Size Impact
- AMOLED: More efficient for smaller displays
- LCD/LED: Larger displays require more powerful backlights
