0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels

원래 장소 중국
브랜드 이름 HuaXin
인증 ISO14001/ISO9001/IATF16949
모델 번호 ESHX099XZJR02
최소 주문 수량 1000
가격 1.5-2usd
포장 세부 사항 물집+폼 박스+버블 백+내부 카톤+마스터 카톤
배달 시간 6 주 ~ 8 주
지불 조건 t/t
공급 능력 한 달에 50k

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
디스플레이 기술 둥근 TFT 디스플레이 이름 시계 oled 디스플레이
크기 0.99''라운드 | 해결 128*115
디스플레이 유형 TFT 인터페이스 SPI
강조하다

0.99 inch IPS TFT LCD round display

,

128x115 resolution round color screen

,

GC9107 full-color TFT display

메시지를 남겨주세요
제품 설명
0.99 Inch High-Definition IPS TFT LCD Round Color Screen
High-quality 0.99" IPS round TFT LCD with 128x115 resolution, GC9107 driver IC, full-color display, and wide viewing angle. Ideal for smart wearables, DIY electronic projects, and industrial instrument panels.
Key Features
  • 128x115 resolution for crisp display
  • GC9107 driver IC for stable performance
  • Wide viewing angle in all directions
  • Long lifespan (50,000+ hours)
  • RoHS certified for commercial use
  • 3.3V supply voltage
  • 450TYP luminance
  • 4 S-PI connection type
Product Specifications
Parameter Value
Part No. ESHX099XZJR02
Driver IC GC9107
Outline Dimensions (L x W x H) 26.71mm x 26.22mm x 1.86mm
Active Area (L x W) 24.36mm x 21.88mm
Viewing Angle All directions
Operation Temperature -20°C to +70°C
Storage Temperature -30°C to 80°C

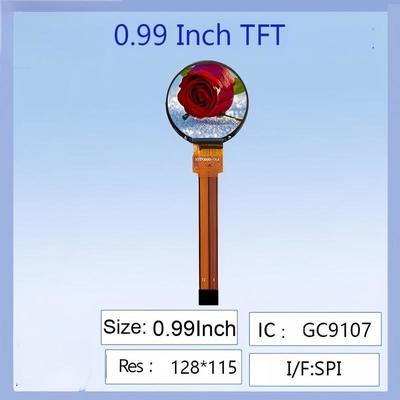

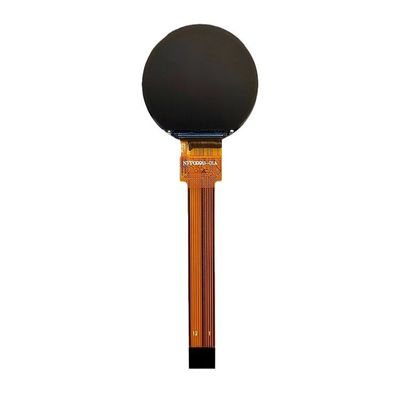

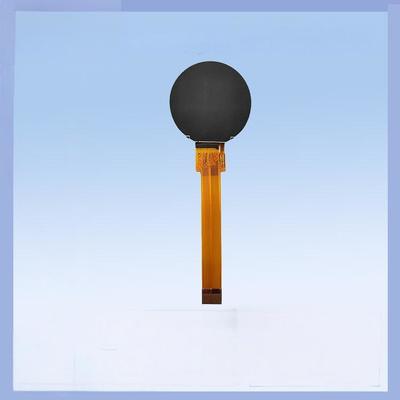

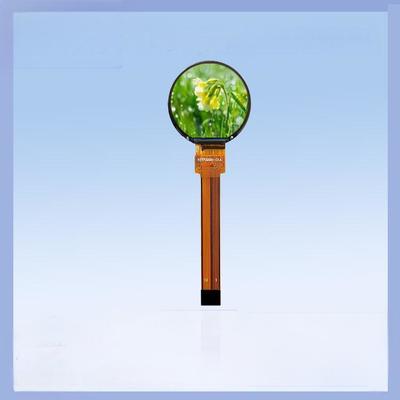

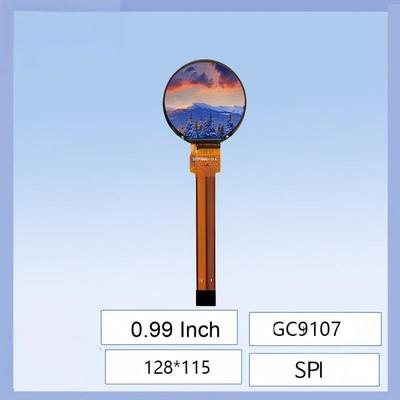

Product Images
0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 0 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 1 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 2 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 3 0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 4
Drawing & Pin Definition
0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels 5
Display Technology Comparison
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast ratio
  • Superior color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: LCD, LCM, TFT, backlight, and OLED displays
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios
  • Collimators & navigators
