3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HuaXin |
| 인증 | ISO14001/ ISO9001/IATF16949 |
| 모델 번호 | HX1392FH101GG |
| 문서 | HX1392FH101GG-SPEC.pdf |
| 최소 주문 수량 | 500 |
| 가격 | $68 |
| 포장 세부 사항 | 물집+폼 박스+버블 백+내부 카톤+마스터 카톤 |
| 배달 시간 | 6 주 ~ 8 주 |
| 지불 조건 | t/t |
| 공급 능력 | 한 달에 50k |
제품 상세 정보
| 디스플레이 기술 | 아몰레 디스플레이 | 이름 | OLED 패널 |
|---|---|---|---|
| 크기 | 3.92" | 해결 | 1080*1240 |
| 명도 | 520 | 인터페이스 | 미피 |
| 운전 IC | RM692C9 | ||
| 강조하다 | 3.92 Inch AMOLED Display Module,1080*1240 Resolution AMOLED Screen,MIPI Interface OLED Panel |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
3.92 Inch AMOLED Display Module 1080*1240 Dots MIPI Interface 520c/d Brightness
3.92 Inch AMOLED display module with 1080*1240 resolution, MIPI interface, and 520cd/m² brightness.
Product Parameters
| Part Number | HX1392FH101GG |
|---|---|
| Screen Type | 3.92 inch AMOLED |
| Resolution | 1080*1240 |
| Viewing Angle | All directions |
| Active Area (mm) | 65.448 (W) * 75.144 (H) |
| Panel Size (mm) | 67.248*79.874*0.699 |
| Brightness (cd/m²) | 520 |
| Interface | MIPI |
| Pin Quantity | 44 pins |
| Driving IC | RM692C9 |

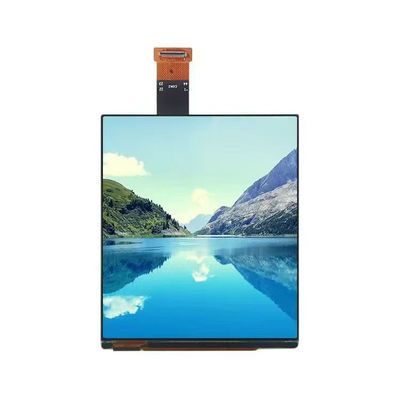

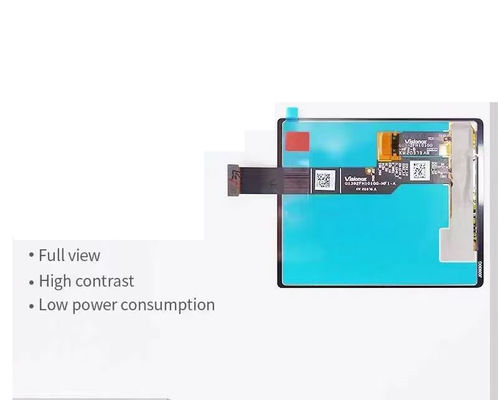

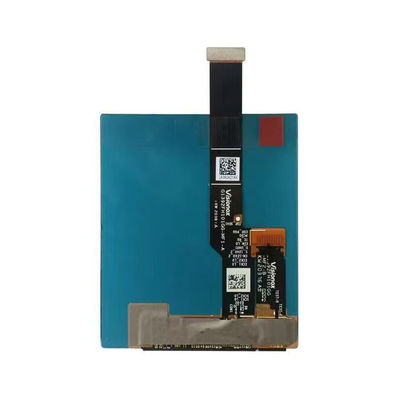

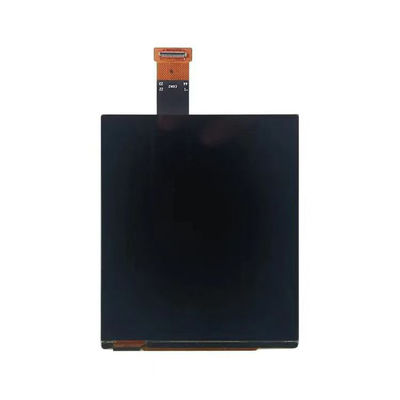

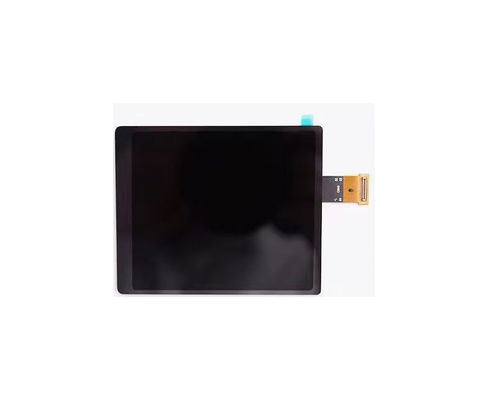

Product Images
Drawing & Pin Definition
OLED Product Knowledge
OLED Advantages:
- Lighter and thinner than LCDs
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages:
- More expensive than LCD and TFT
- Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantages:
- Factory located in cost-effective inland city
- Advanced equipment for stable quality
- Most processes use fully automatic equipment
- Professional engineers with 20+ years experience
- Custom product design capability
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Details:
- Huaxin Technology (Enshi) Co., LTD
- Located in Hubei, Enshi
- Founded in 2009
- High-tech enterprise specializing in LCD, LCM, TFT, backlight, OLED
- LCD product range: VA, TN, HTN, STN, FSTN, CSTN series
- LCM product range: COB, TBA, COG, TP, LED backlight series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Excellent Color Accuracy and Vibrancy
- Wide Viewing Angles
- Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
- AMOLED displays consume power per-pixel (black/dark pixels use very little power)
- LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
- AMOLED more efficient for dark content (pixels can be turned off)
- LCD/LED power consumption remains constant for all content
3. Brightness Control:
- AMOLED can adjust pixel brightness individually for better efficiency
- LCD/LED typically have fixed backlight brightness
4. Display Size:
- AMOLED more power-efficient for smaller displays
- Larger LCD/LED displays may require more power-hungry backlights
