8.2 Inch Round TFT Display with 1080x1080 Resolution and 500c/d Brightness for High Clarity Applications
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 디스플레이 기술 | 원형 TFT | 이름 | 원형 TFT 디스플레이 |
|---|---|---|---|
| 크기 | 8.2 | 해결 | 1080x1080 |
| 온셀터치IC | FT8201P | 각도를 봅니다 | 무료 시야각 |
| 인터페이스 | 미피 | ||
| 강조하다 | 8.2 Inch Round TFT Display,1080x1080 Resolution Round TFT Display,500c/d Brightness Round TFT Display |
||
제품 설명
8.2 Inch Round TFT Display
High-resolution 1080x1080 round display with 40-pin MIPI interface and 500cd/m² brightness, featuring on-cell touch technology.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX082YMO-E40 |
| Display Size | 8.2 inch round TFT display |
| Outline Size (mm) | 219*224*4 |
| AA Size (mm) | 208*208 |
| Resolution | 1080*1080 |
| Interface | 40 PINS MIPI |
| Brightness | 500cd/m² |
| View Angle | All directions |
| Touch | On-cell touch (FT8201P controller) |

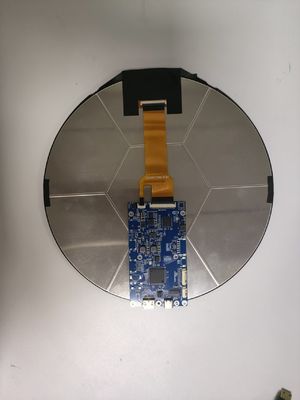

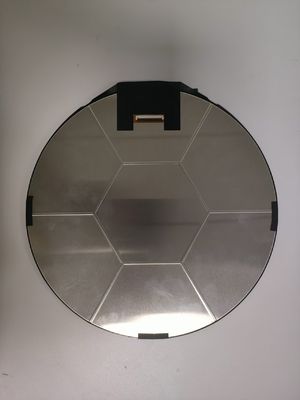

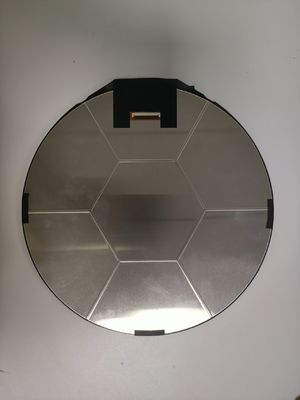

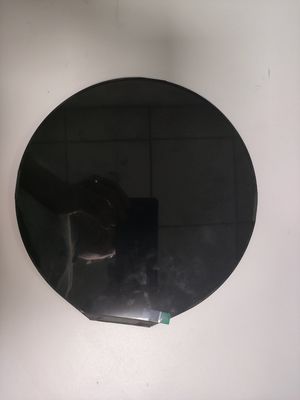

Product Images
Technical Drawings
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD - Established 2009 in Hubei, Enshi
Company Advantages
- Cost-effective inland production base
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry expertise
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Profile
- Specializes in LCD, LCM, TFT, backlight, and OLED technologies
- LCD product range: VA, TN, HTN, STN, FSTN, CSTN
- LCM product range: COB, TBA, COG, TP, LED backlight
- Registered capital: 20 million
- 500+ employees (10% R&D, 15% QC)
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand/Day |
Product Applications
- Car navigation systems & printers
- Video communication & digital advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control & home appliances
TFT Display Advantages
- Superior Image Quality: High resolution, sharpness, and color accuracy
- Fast Response Time: Quick pixel switching for smooth motion
- Wide Viewing Angles: Clear visibility from multiple positions
- Energy Efficient: Lower power consumption than alternatives
- Size Flexibility: Available from small to large panel sizes
- LED Backlit: Bright, uniform illumination
- Versatile Applications: Suitable for diverse industries
TFT Display Considerations
- Viewing angles may be limited compared to some technologies
- Contrast ratio may be lower than alternative displays
- Backlighting affects power consumption
- Potential for motion blur in fast-moving content
- Limited flexibility in curved applications
- Color gamut may be narrower than some alternatives
