13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HuaXin |
| 인증 | ISO14001/ ISO9001/IATF16949 |
| 모델 번호 | LP133QX1-EPA1 |
| 문서 | LP133QX1-EPA1_Final CAS_Ver...3_.pdf |
| 최소 주문 수량 | 1000 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 물집+폼 박스+버블 백+내부 카톤+마스터 카톤 |
| 배달 시간 | 6 주 ~ 8 주 |
| 지불 조건 | 티/티 |
| 공급 능력 | 한 달에 50k |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 디스플레이 기술 | 유연한 amoled | 이름 | OLED 디스플레이 |
|---|---|---|---|
| 크기 | 13.3 " | 해결 | 2048*1536 |
| 명도 | 300cd/m2 | 인터페이스 | 40핀 eDP |
| 각도를 봅니다 | 모두 | ||
| 강조하다 | 13.3 Inch AMOLED Display Module,2048*1536 Resolution OLED Display Module,300cd/m2 Brightness Flexible AMOLED Display |
||
제품 설명
13.3 Inch Flexible AMOLED Display Module
High-resolution 2048×1536 flexible AMOLED display with 300cd/m² brightness and on-cell touch technology featuring EDP interface.
Product Specifications
| Part No. | LP133QX1-EPA1 |
|---|---|
| Display Size | 13.3 inch flexible AMOLED |
| Outline Size (mm) | 213.80×284.80×0.53 |
| AA Size (mm) | 202.752×270 |
| Resolution | 2048×1536 |
| Interface | 40PIN eDP |
| Brightness | 300c/d |
| View Angle | ALL |

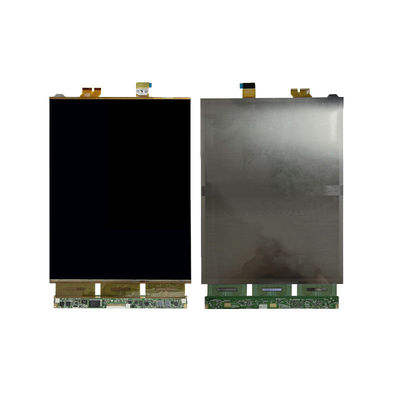

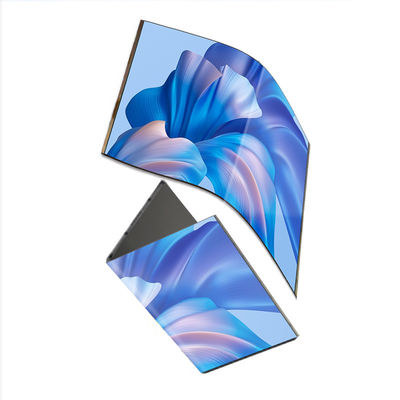

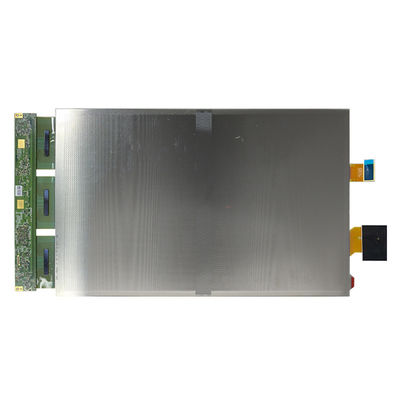

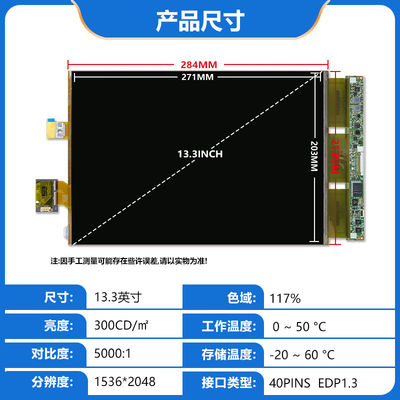

Product Images
OLED Technology Overview
OLED Advantages
- Lighter and thinner than LCD displays
- High contrast ratio
- Excellent color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
- Cost-effective inland production base
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom design capabilities
Certifications
ISO14001, ISO9001/IATF16949, SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand Pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand Pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand Pieces/Day |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & navigation devices
- Collimators & medical equipment
AMOLED Display Characteristics
- Self-emissive pixels
- Superior contrast ratio
- Excellent color accuracy and vibrancy
- Wide viewing angles
- Power efficiency
- Thin and flexible design
- Fast response time
Power Efficiency Comparison: AMOLED vs. LCD/LED Displays
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
- Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
- Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
