10.66 inch TFT LCD Module with 462RGBx1920 Resolution and MIPI Interface IPS TFT Display
제품 상세 정보
| 디스플레이 기술 | IPS TFT | 이름 | TFT LCD 모듈 |
|---|---|---|---|
| 크기 | 10.66" | 해결 | 462(RGB)*1920 |
| 운전 IC | ICNL9707 | 시야각 | 모두 0'시계 |
| 인터페이스 | 미피 | ||
| 강조하다 | 10.66 inch TFT LCD Module,462RGBx1920 resolution TFT Color Display,MIPI Interface IPS TFT Display |
||
제품 설명
10.66 inch TFT LCD Module, 462RGBx1920 resolution , MIPI Interface,IPS screen,500 brightness, Driving IC ICNL9707 18LEDS
Product Specifications
| Part NO. | HX106001A |
| Display Technology | IPS TFT LCD |
| Diagonal Screen Size | 10.66inch |
| Active Area (mm) | 226.25(H)X54.44(V) |
| Panel size(mm) | 249.40(H)X66.0(V)X4.5(T) |
| Brightness(cd/m2) | 500 |
| Resolution | 462(RGB)*1920 |
| Interface | MIPI |
| View angle | ALL o'clock |
| Driving IC | ICNL9707 |

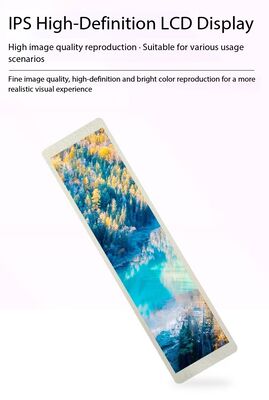

Product Picture

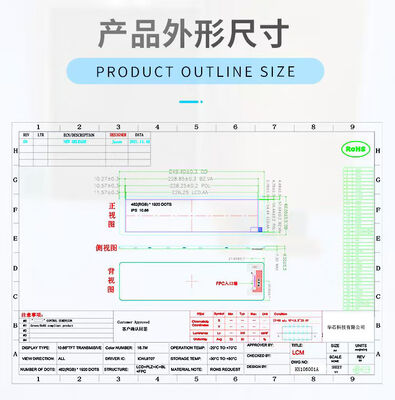

Technical Drawing
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
- Cost-effective factory base in inland city
- Advanced equipment for stable quality
- Automated processes for efficiency and consistency
- Expert engineering team with 20+ years experience
- Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
- Registered capital: 20 million
- Current staff: 500+ employees
- R&D accounts for 10% of workforce
- QC accounts for 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Excellent image quality with high resolution, sharpness, and color accuracy
- Fast response times for quick pixel switching
- Wide viewing angles with minimal color shifts
- Energy-efficient operation
- Available in various sizes from small handheld to large panel displays
- LED backlighting for screen illumination
- Wide range of applications across multiple industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Limited contrast ratio
- Backlighting requirements and power consumption
- Response time limitations and potential motion blur
- Limited flexibility in display form factors
- Limited color gamut range
