1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
제품 상세 정보
| 디스플레이 기술 | LCD 디스플레이 모듈 | 이름 | TFT LCD |
|---|---|---|---|
| 크기 | 1.12 인치 | 해결 | 50 × 160 |
| 명도 | 350c/d | 인터페이스 | 4 라인 SPI |
| 각도를 봅니다 | 모두 | ||
| 강조하다 | 1.12-inch IPS TFT LCD screen,50×160 dot matrix serial screen,bar type TFT with GC9D01 driver |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명

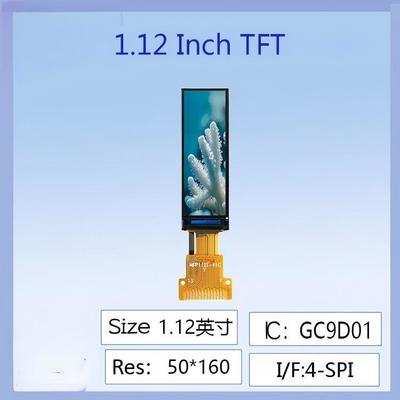

1.12-inch IPS TFT LCD Screen | 50*160 Dot Matrix Serial Screen with GC9D01 Driver
Special for Industrial Equipment Status Bars / Smart Wearables, High Definition, Low Power Consumption
Product Parameters
| Part No. | HX112FHD010 |
|---|---|
| Display Size | 1.12 inch TFT display |
| Outline Size (mm) | 10.8(H)*32.18(V)*2.11(D)(mm) |
| AA Size (mm) | 8.49*27.17(mm) |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Resolution | 50*160 |
| Interface | 4 LINE SPI |
| Driving IC | GC9D01 |
| Brightness | 350C/D |
| View Angle | All |

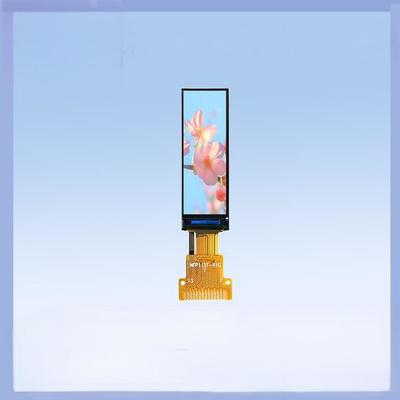

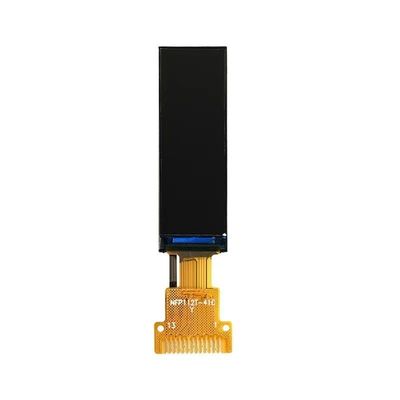

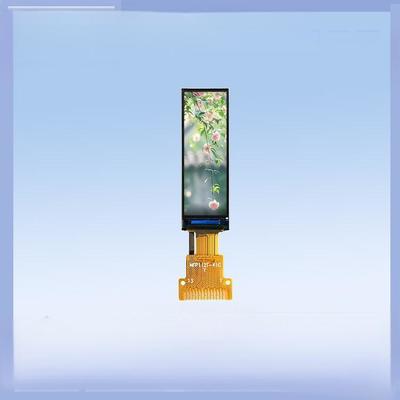

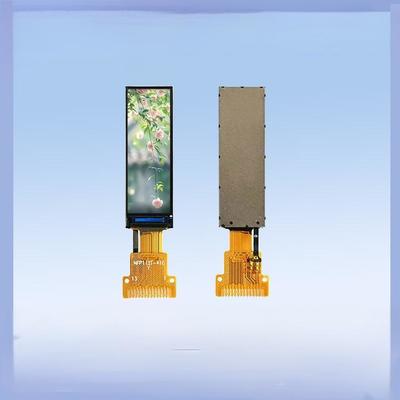

Product Images
Technical Drawings
TFT Product Knowledge
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages:
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Fully automated processes for efficiency
- 20+ years of LCD industry experience
- Custom product design capabilities
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Product Portfolio:
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast switching of pixels
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: Lower power consumption than other technologies
- Size and Flexibility: Available in various sizes for different applications
- Backlighting: Typically uses LED backlighting
- Applications: Wide range of industrial and commercial uses
TFT Display Limitations
- Viewing Angles: Some models have limited optimal viewing angles
- Contrast Ratio: May be limited compared to other technologies
- Power Consumption: Backlighting increases power needs
- Response Time: Potential motion blur in fast-moving images
- Flexibility: Limited flexibility in some designs
- Color Gamut: May be narrower than some alternatives
