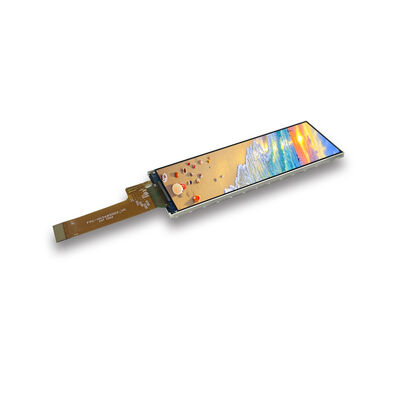

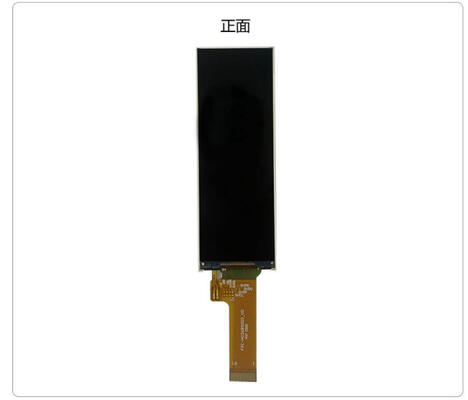

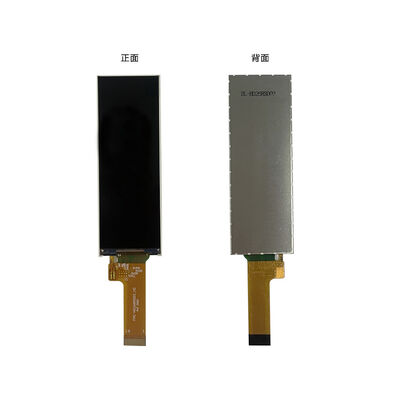

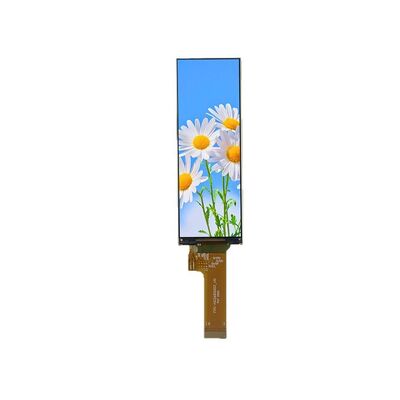

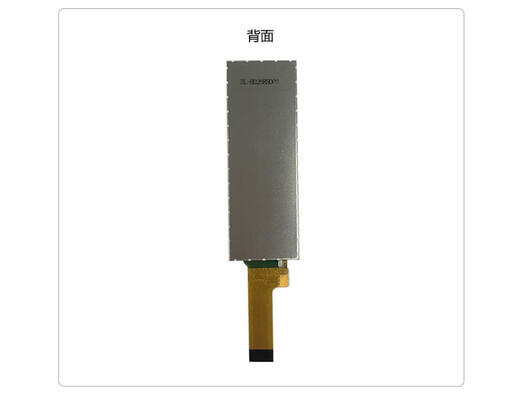

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HuaXin |
| 인증 | ISO14001/ISO9001/IATF16949 |
| 모델 번호 | HX0268S003T003 |
| 문서 | HX0268S003T003-SPEC.pdf |
| 최소 주문 수량 | 1000 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 물집+폼 박스+버블 백+내부 카톤+마스터 카톤 |
| 배달 시간 | 6 주 ~ 8 주 |
| 지불 조건 | 티/티 |
| 공급 능력 | 한달에 100K |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 디스플레이 기술 | 바 타입 LCD | 이름 | 바 타입 TFT |
|---|---|---|---|
| 크기 | 2.68" | 해결 | 142RGB x 428 |
| 명도 | 450 | 각도를 봅니다 | 무료 시야각 |
| 인터페이스 | QSPI | 운전 IC | NV3007 |
| 터치 패널 | CTP |
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

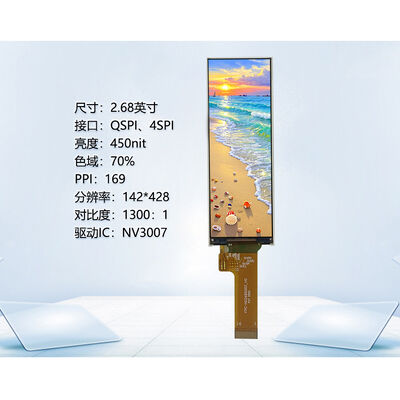

Product Specifications
| Part No. | HX0268S003T003 |
| Display Size | 2.68 inch tft display |
| Outline Size (mm) | 24.38(H) ×69.43(V)×2.09(T) |
| AA Size (mm) | 21.28(H)×64.14(V) |
| Resolution | 142RGB x 428 |
| Interface | QSPI |
| Brightness | 450 |
| View Angle | all |
| Driving IC | NV3007 |
| Touch screen | CTP |
Technical Drawing
TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT Structure
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Founded: 2009
- Location: Hubei, Enshi
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- QC team: 15% of workforce
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternative technologies
- Size Flexibility: Available in sizes from small handheld to large panels
- Backlighting: Typically uses LED backlight systems
- Versatility: Wide range of applications across industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratio
- Backlighting increases power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to some alternatives
