3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
제품 상세 정보
| 디스플레이 기술 | 바 타입 LCD | 이름 | 바 타입 TFT |
|---|---|---|---|
| 크기 | 6.9" | 해결 | 280(RGB)×1424 |
| 명도 | 300Cd/m2 | 시야각 | 무료 시야각 |
| 인터페이스 | 미피 | 운전 IC | AXS15231 |
| 백라이트 | 8 LED | 크기 | 3.71 인치 |
| 해결 | 240(RGB)×960 |
제품 설명
3.71 Inch Bar Type Color LCD Display
240(RGB) x 960 Dots with MIPI Interface for Home Appliances Use

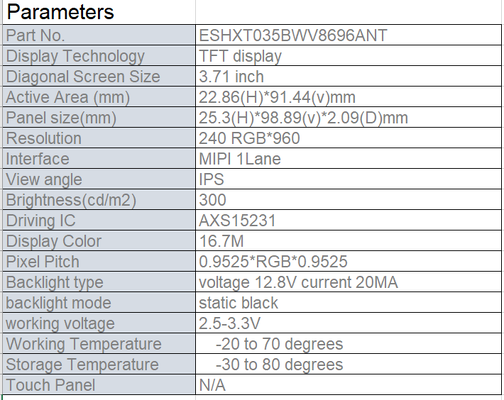

Product Specifications

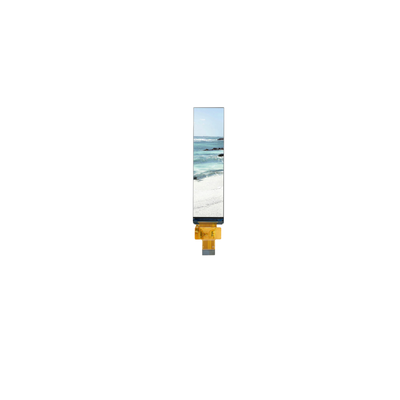

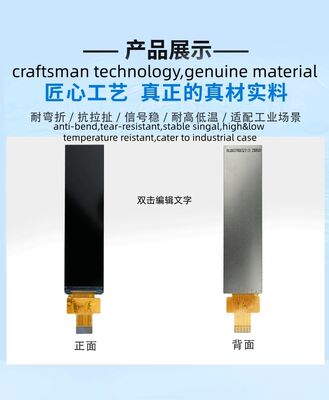

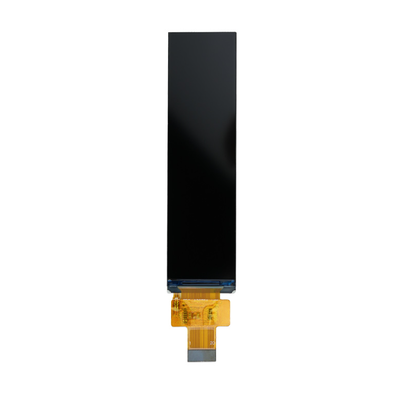

Product Images

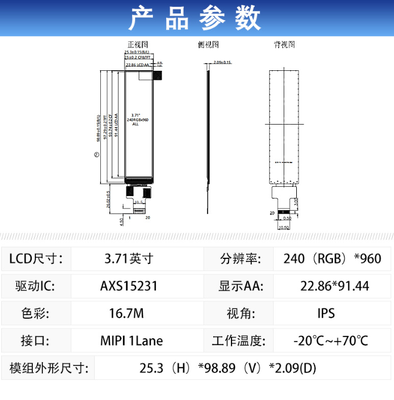

Technical Drawing
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Founded: 2009
- Location: Hubei, Enshi
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- QC team: 15% of workforce
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated production processes
- 20+ years experience in LCD field
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternative technologies
- Size Flexibility: Available in sizes from small handheld to large panels
- Backlighting: Typically uses LED backlight systems
- Versatility: Wide range of applications across industries
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratio
- Backlighting increases power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to some alternatives
